BookInfo Application Example#

This example demonstrates how an application like Istio BookInfo can be deployed using Skyshift. This test uses two k8s clusters:

Cluster1 : A Product-Page microservice (application frontend) and details microservice run on the first cluster, which is used as frontend.
Cluster2 : A Reviews-V2 (display rating with black stars) and Rating microservices run on the second cluster, used as backend.

Start Skyshift using the commands listed in Setup Guide.
Add the first cluster to Skyshift.

Optionally, Create and configure KIND cluster.

kind create cluster --name=cluster1

Next, enable MetalLB to provision loadbalancer for creating service with external IP, since this will be a frontend cluster.

kubectl apply -f https://raw.githubusercontent.com/metallb/metallb/v0.13.10/config/manifests/metallb-native.yaml

Check the status of the MetalLB pods using the following command, and wait until they are in running state.

kubectl get pods -n metallb-system

Once the pods are in running state, apply the following configuration.

sleep 5
kubectl apply -f - <<EOF
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
    name: kind-pool
    namespace: metallb-system
 spec:
    addresses:
        - 172.18.255.1-172.18.255.250  # Choose an IP range that doesn't conflict with your local network
---
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
    name: kind-advertisement
    namespace: metallb-system
EOF

Finally, add this cluster to Skyshift with label as frontend.

skyctl create cluster --manager k8 kind-cluster1 --labels type frontend

Now, add the second cluster to Skyshift with label as backend.

Optionally, Create KIND cluster.

kind create cluster --name=cluster2

skyctl create cluster --manager k8 kind-cluster2 --labels type backend

Submit the jobs productpage and details microservice to Skyshift.

export SKYSHIFT=<Path to cloned Skyshift directory>

skyctl apply -f $SKYSHIFT/examples/bookinfo-demo/productpage.yaml

skyctl apply -f $SKYSHIFT/examples/bookinfo-demo/details.yaml

Verify if the jobs are in running state and scheduled in kind-cluster1.

$ skyctl get jobs
⠙ Fetching jobs
NAME         CLUSTER        REPLICAS    RESOURCES          NAMESPACE    STATUS    AGE
details-v1   kind-cluster1  1/1         cpus: 7.0          default      RUNNING   12s
                                        memory: 128.00 MB
productpage  kind-cluster1  1/1         cpus: 7.0          default      RUNNING   18s
                                        memory: 128.00 MB
✔ Fetching jobs completed successfully.

Create a service for the jobs.

skyctl apply -f $SKYSHIFT/examples/bookinfo-demo/productpage_service.yaml

skyctl apply -f $SKYSHIFT/examples/bookinfo-demo/details_service.yaml

Deploy reviews and ratings microservice in cluster2.

skyctl apply -f $SKYSHIFT/examples/bookinfo-demo/ratings.yaml

skyctl apply -f $SKYSHIFT/examples/bookinfo-demo/reviews.yaml

Note

Ideally, now the jobs must be running in the clusters similar to below output, productpage, and details-v1 are scheduled in kind-cluster1, while ratings-v1, and reviews-v2 are scheduled in kind-cluster2.

$ skyctl get jobs
⠙ Fetching jobs
NAME         CLUSTER        REPLICAS    RESOURCES          NAMESPACE    STATUS    AGE
details-v1   kind-cluster1  1/1         cpus: 7.0          default      RUNNING   14m
                                        memory: 128.00 MB
productpage  kind-cluster1  1/1         cpus: 7.0          default      RUNNING   15m
                                        memory: 128.00 MB
ratings-v1   kind-cluster2  1/1         cpus: 7.0          default      RUNNING   47s
                                        memory: 128.00 MB
reviews-v2   kind-cluster2  1/1         cpus: 7.0          default      RUNNING   15s
                                            memory: 128.00 MB
✔ Fetching jobs completed successfully.

Create a link between the two clusters.

skyctl create link -s kind-cluster1 -t kind-cluster2 clink

Now, we create reviews service in cluster1, so that it is accessible to productpage.

skyctl apply -f $SKYSHIFT/examples/bookinfo-demo/ratings_service.yaml

skyctl apply -f $SKYSHIFT/examples/bookinfo-demo/reviews_service.yaml

Note

At this point it uses clusterlink to import the reviews service from cluster2 .

Now, we can try to access the productpage frontend application.

export FRONTEND_IP=`kubectl get svc productpage --context kind-cluster1 -o jsonpath='{.status.loadBalancer.ingress[0].ip}'`

Note

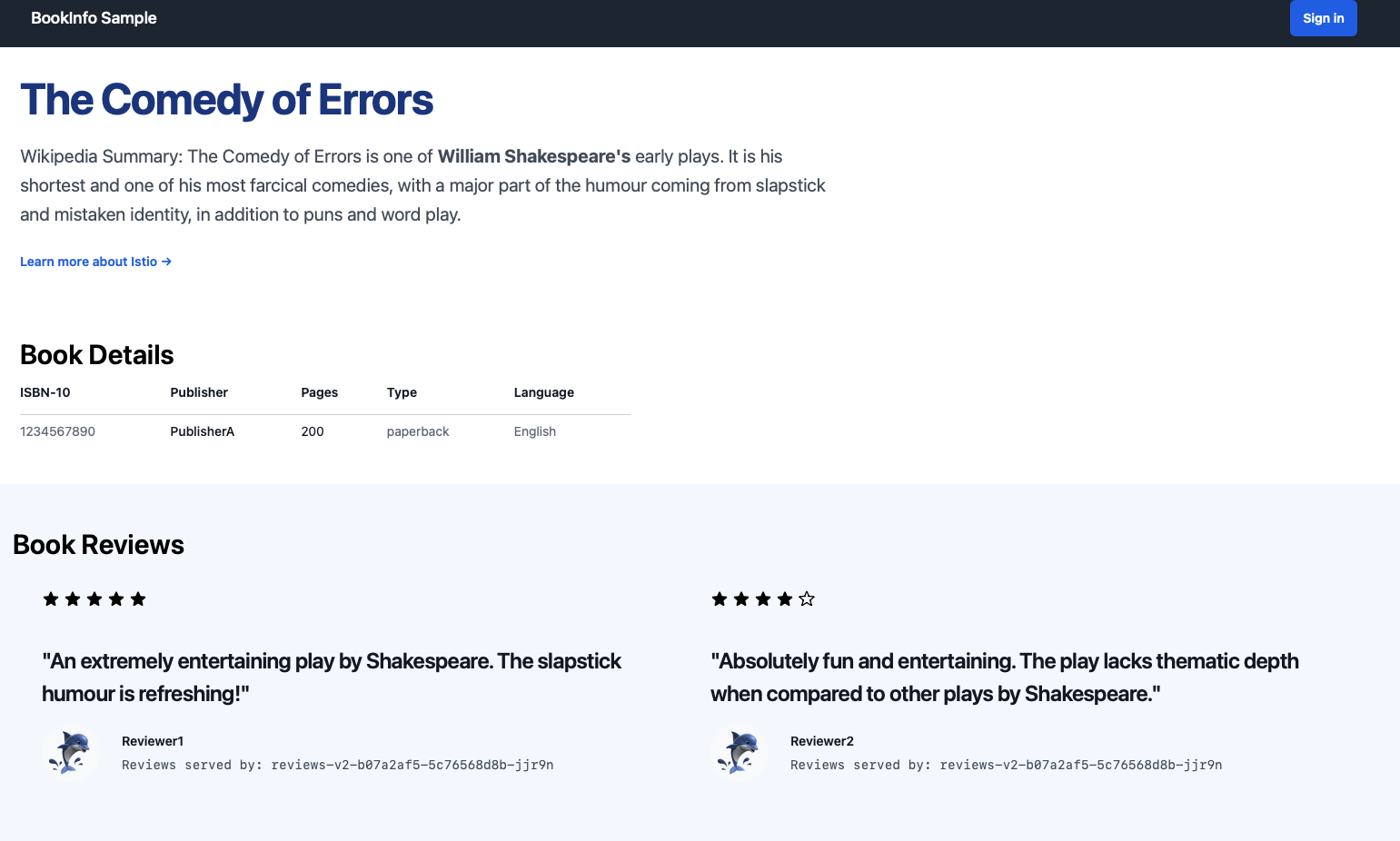

Open http://$FRONTEND_IP/productpage in browser, and you should be able to view the rating/reviews of the book as shown below.

Finally, Cleanup.
```
./cleanup.sh
```
